When it comes to high-strength structural steel, S960QL Steel Plate stands out as a powerful solution for demanding applications. With excellent strength, good weldability, and superb toughness, this material is becoming increasingly popular in industries like construction, mining, heavy machinery, and transportation.
In this blog, we’ll dive deep into what S960QL Steel Plate is, its key features, applications, composition, advantages, and important considerations before using it.
What is S960QL Steel Plate?

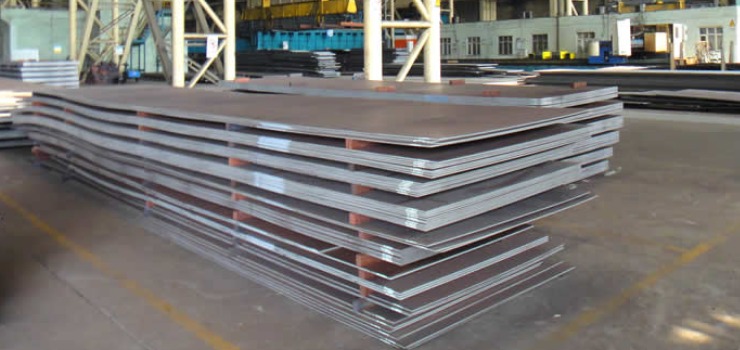

S960QL Steel Plate is a high-strength quenched and tempered structural steel plate. The name itself tells a lot:
- S stands for structural steel
- 960 represents the minimum yield strength in megapascals (MPa)
- Q indicates that the steel is quenched
- L shows that it is low temperature impact tested (usually at -40°C)
In simple words, S960QL is a structural steel that can handle extreme stress and is suitable for use in low-temperature environments, making it perfect for harsh working conditions.
Why Choose S960QL Steel Plate?
There are plenty of reasons industries prefer S960QL Steel Plate over conventional materials:
- Exceptional strength – It has a minimum yield strength of 960 MPa
- Lightweight design – Thinner sections can be used, reducing overall weight
- Good weldability – Even with high strength, it is still weldable using standard methods
- Durability in extreme environments – Performs well under cold conditions due to impact-tested toughness
These characteristics make it a top choice for engineers who want strength without compromising on weight or safety.
Key Features of S960QL Steel Plate
Here are the major features that define the performance of S960QL Steel Plate:
1. High Yield Strength
The steel plate offers a yield strength of 960 MPa, which is significantly higher than regular structural steel. This allows for the use of thinner and lighter materials without sacrificing performance.
2. Excellent Toughness
It undergoes impact testing at -40°C, making it reliable in cold climates and critical applications like offshore structures and bridges.
3. Superior Weldability
Despite being extremely strong, S960QL remains weldable using conventional welding techniques. This reduces the hassle during fabrication and installation.
4. Consistent Flatness and Thickness
High-quality S960QL Steel Plates are rolled and processed to maintain uniform flatness and tight tolerances in thickness, helping in precise engineering and assembly.
Chemical Composition of S960QL Steel Plate
The chemical makeup of a steel plate is what gives it its unique properties. Here’s a general overview of the composition of S960QL:
| Element | Content (%) |
|---|---|
| Carbon (C) | ≤ 0.20 |
| Manganese (Mn) | ≤ 1.70 |
| Silicon (Si) | ≤ 0.80 |
| Chromium (Cr) | ≤ 1.50 |
| Nickel (Ni) | ≤ 2.00 |
| Molybdenum (Mo) | ≤ 0.70 |
| Phosphorus (P) | ≤ 0.020 |
| Sulphur (S) | ≤ 0.010 |
Note: Exact percentages may vary slightly by manufacturer.
This combination gives S960QL its high strength, good hardenability, and excellent toughness at low temperatures.
Mechanical Properties of S960QL Steel Plate
| Property | Value |
|---|---|
| Yield Strength | ≥ 960 MPa |
| Tensile Strength | 980 – 1150 MPa |
| Elongation | ≥ 10% |
| Impact Energy | ≥ 30 J at -40°C |
| Hardness (HBW) | ~300 |
These mechanical values make S960QL Steel Plate a go-to material for high-load applications, especially where structural integrity is non-negotiable.
Applications of S960QL Steel Plate
Thanks to its strength and performance, S960QL is widely used in:
1. Construction and Infrastructure
- Bridges, high-rise buildings, and structures that require reduced weight and high load capacity.
2. Mining Equipment
- Used for components like dump truck chassis, excavator booms, and loaders that experience continuous stress.
3. Cranes and Lifting Machinery
- Its strength-to-weight ratio is ideal for mobile cranes, overhead gantry systems, and boom arms.
4. Heavy-Duty Transport Vehicles
- Trailers, heavy trucks, and railway wagons benefit from the reduced weight and increased load-handling capability.
5. Offshore and Marine Applications
- Performs reliably in harsh, cold, and corrosive environments such as oil rigs and ocean platforms.
Advantages of Using S960QL Steel Plate
Here are the major benefits of choosing S960QL Steel Plate over traditional structural steels:
Weight Reduction
Thinner sections can be used without compromising strength. This lowers transportation and installation costs.
Improved Load-Bearing Capacity
You can build lighter structures that carry heavier loads, improving design efficiency and safety.
Time and Cost Saving
Its weldability and machinability help in faster production and fewer resources spent on secondary processes.
Environment-Friendly
Less material usage means fewer emissions and reduced steel consumption – a plus for sustainable projects.
How is S960QL Steel Plate Made?
The steel undergoes a special quenching and tempering process:
- Quenching – Steel is rapidly cooled from high temperatures to harden the structure.
- Tempering – It’s reheated to a moderate temperature to reduce brittleness and improve ductility.
Conclusion
S960QL Steel Plate is a smart choice for projects that require exceptional strength, reduced weight, and reliable toughness. From heavy machinery to high-rise buildings and offshore rigs, this material delivers high performance where it matters the most.
When sourced from a trusted S960QL Steel Plate Manufacturer, it offers long-term durability, superior performance, and cost-effectiveness. Whether you’re an engineer, designer, or buyer, knowing these details will help you make informed decisions for your next project.
