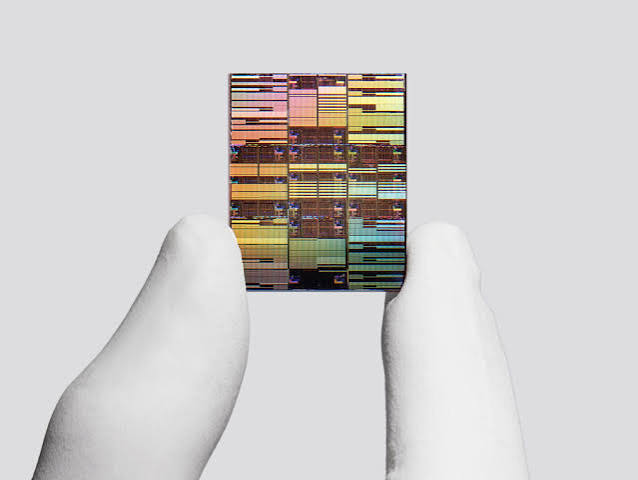

IBM researchers on June 25 unveiled a 3D chip architecture that pushes beyond traditional atomic limits, presenting a microscopic 0.7 nanometer node built as a layered “nanostack.” The announcement marks a landmark moment for semiconductor engineering and raises questions about compute performance, energy efficiency, manufacturing complexity and the next phase of Moore style scaling.
What IBM announced and why it matters
IBM described a three dimensional transistor and interconnect approach that departs from conventional planar and single layer gate designs. By stacking functional layers at sub1 nanometer dimensions and using novel materials and fabrication methods researchers generated device footprints that, in principle, allow a much greater packing density and lower switching energy per operation. For the industry this matters because it suggests a credible pathway to sustain exponential gains in logic density when traditional node shrinks face atomic and quantum constraints.
Reading the technical claims
The company highlighted several technical breakthroughs: atomic scale patterning techniques to define features near seven tenths of a nanometer, engineered channel materials that maintain carrier mobility at extreme confinement, and vertical interconnect fabrics that reduce latency between layers. IBM also emphasized error mitigation strategies tailored for atomic scale variability and heat removal approaches adapted to stacked geometries. Taken together the suite of advances aims to preserve performance scaling while avoiding untenable power dissipation and yield collapse.
Engineering challenges the team overcame
Pushing below one nanometer poses distinct scientific challenges. Atoms crowd the device scale and quantum mechanical effects such as tunneling and variability in atomic placement can dominate device behavior. Fabrication must control atomic arrangements with unprecedented precision while keeping defects low enough for commercial yields. Thermal management also becomes acute when active layers sit in close proximity and cannot disperse heat laterally as easily as in two dimensional chips.
IBM researchers said they addressed these problems through a combination of extreme ultraviolet and directed self assembly lithography for pattern fidelity, heterostructure channel engineering to stabilize carriers, and embedded thermal vias within the nanostack to conduct heat to a substrate. They also described new statistical design rules that accept a degree of atomic variation while using redundancy and error correction at the circuit level to maintain reliable operation.
Implications for performance and energy use
If the prototype metrics scale to production consumers and data center operators could see processors that deliver higher compute throughput per watt compared with current leading nodes. Lower switching energy at the device level can reduce data center energy demand for compute intensive workloads such as artificial intelligence training and large scale simulation. For edge devices more efficient transistors could extend battery life and enable more powerful on device AI inference.
Yet real world performance gains will depend on manufacturing yields thermal integration with packaging and the ability of software and system architects to exploit a denser fabric. Early adopters typically face a co design period where architectures and compilers are tuned to new device characteristics and reliability practices mature.
Manufacturing and supply chain realities
Turning a laboratory nanostack into mass produced chips is a multi year process that requires fabs to adopt new lithography, materials and process flows. Foundries will need to validate materials compatibility with their toolsets and rework supply chains for exotic precursors and specialized metrology. Capital costs for such transitions are high and will likely concentrate initial production among a small number of large fabs and strategic partners.
Policy and export controls may also influence the pace of adoption because cutting edge fabrication capabilities are strategically sensitive. Collaboration between corporate research labs academic consortia and government programs will probably accelerate technology transfer and de risk early manufacturing runs.
Economic and competitive fallout
An engineering success at sub1 nanometer creates both opportunity and pressure across the semiconductor ecosystem. Firms that master the technology can claim leadership in performance per area and energy efficiency which could drive new design wins and premium products. At the same time other companies face the strategic imperative to either license similar techniques invest in competing approaches or prioritize differentiated system level features rather than raw transistor density.
Smaller chip designers may benefit if foundries offer multi tenant access to advanced nodes through multi project wafer services and design kits adapted to the nanostack. Conversely the largest cloud providers and system OEMs may pursue bespoke integration to secure performance advantages for workloads ranging from generative AI to high performance computing.
Software and architecture considerations
New device characteristics reshape how architects and compiler teams design systems. Denser on chip fabrics open the possibility for larger caches faster inter core communication and novel memory hierarchies that reduce off chip traffic. But electrical characteristics differ at atomic scale which affects timing closure and variability tolerant instruction scheduling. Software toolchains and operating systems will need to evolve to exploit layered fabrics and to handle error correction mechanisms at runtime.
We can expect an initial period where hardware innovators provide optimized libraries and compilers to extract performance for key workloads. Over time the ecosystem will generalize those techniques into mainstream development environments and cloud service offerings.
Ethical and environmental considerations
While potential energy savings per operation are promising the environmental footprint of ramping a new fabrication process can be significant. New materials and chemical precursors have lifecycle impacts that must be assessed. Responsible scaling therefore requires transparent environmental assessments sustainable supply chain practices and investments in recycling and recovery of rare materials used in the nanostack processes.
Equity in access to advanced compute is another angle to watch. If the new node concentrates capability among a few players it could widen gaps in research and commercial capacity globally. International collaboration and inclusive licensing frameworks can help broaden benefits while protecting strategic interests.
Where to follow further developments
Readers who want direct technical details and follow on updates can consult peer reviewed publications and IBM research releases which will provide deeper data on device metrics and fabrication recipes. Industry bodies and technical conferences will publish independent evaluations and benchmarking studies over the coming months. For official materials and papers see IBM Research and archival journals that cover semiconductor physics and microfabrication.
For background on the science and broader industry context visit the IEEE Xplore digital library at ieeexplore.ieee.org or IBM Research announcements at research.ibm.com where technical reports and follow up papers will appear as the work undergoes peer review and validation.
Final perspective
IBM s announcement of a 0.7 nanometer nanostack is a vivid reminder that materials science device engineering and systems design continue to co evolve at the frontiers of possibility. The milestone reframes conversations about future compute capacity energy use and industrial strategy. Success will not be measured by a single press release but by whether the promise of sub1 nanometer devices translates into reliable, scalable silicon that powers useful products and services in the years ahead. We will watch how fabrication partners regulators designers and users jointly convert this laboratory achievement into practical technology that touches everyday life.
